Umatshini weRibhoni wePV weSolar

IRibhoni ye-PV yeSola kunye ne-MBB yoNxibelelwano lweZisombululo zoMveliso

I-GRM ibonelela ngezisombululo ezipheleleyo zokwenziwa kweIribhoni yonxibelelwano lwe-PV, iribhoni ye-PV yebhasi kunye ne-MBB ejikelezayo yokuvelisa ucingo. Iphothifoliyo yethu yezixhobo ibandakanya ukuqengqeleka okuchanekileyo, ukufakwa kwe-annealing, i-tinning, unyango lwangaphezulu kunye neenkqubo ezizenzekelayo ze-spooling, ukuxhasa ukuveliswa kwee-conductors eziphezulu zokusebenza kwiimodyuli ze-photovoltaic zanamhlanje.

Yenzelwe umgangatho ozinzileyo, ulawulo oluchanekileyo lwe-dimensional kunye nokusebenza okuthembekileyo kwexesha elide, izisombululo ze-GRM zinceda abavelisi ukuba bahlangabezane nemfuno ekhulayo yobuchule obuphezulu be-solar cell interconnection technology.

Gqibezela izisombululo zesiXhobo seSolar Conductor

IRibhoni yoQhagamshelwano lwePV

I-PV Busbar

MBB Round Wire

Iribhoni yoqhagamshelwanoidlulisela okwangoku phakathi kweeseli zelanga,iribhoni yebhasiiqokelela kwaye ihambisa yangoku kwibhokisi yesiphambuka, ngelixaI-MBB yocingo olujikelezayoyenza ukusebenza kwemodyuli ephezulu ngokunciphisa ilahleko ye-shading.

Aba baqhubi badlala indima ebalulekileyo ekuphumeni kwamandla, ukuthembeka kunye nokusebenza kwemodyuli yexesha elide.

Ii-Solar Conductor zenziwa njani

I-GRM ibonelela ngezisombululo ezipheleleyo zemveliso yokwenziwa komqhubi welanga. Izixhobo ze-GRM zigubungela ukuhanjiswa komsebenzi ogqityiweyo ukusuka ekuqengqelekeni okuchanekileyo kunye nokuqhotyoshwa ukuya kwitinki kunye nokulungiswa kwemathiriyeli yobhedu ukuya kwiribhoni ye-PV egqityiweyo kunye neemveliso zocingo ze-MBB.

Inkqubo edibeneyo yokuvelisa iqinisekisa ukuchaneka kobukhulu, umgangatho ozinzileyo wokugquma kunye nokusebenza kakuhle kwemveliso.

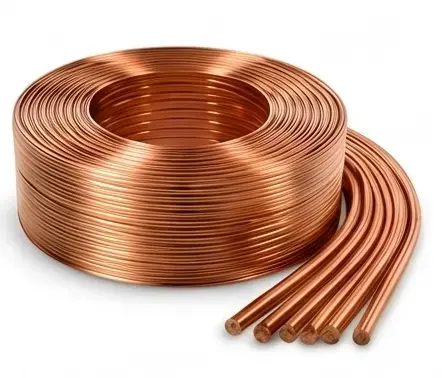

Izinto zobhedu ezikrwada

Intonga yobhedu yococeko oluphezulu njengento ekrwada

Intonga yobhedu

ucingo lobhedu

→

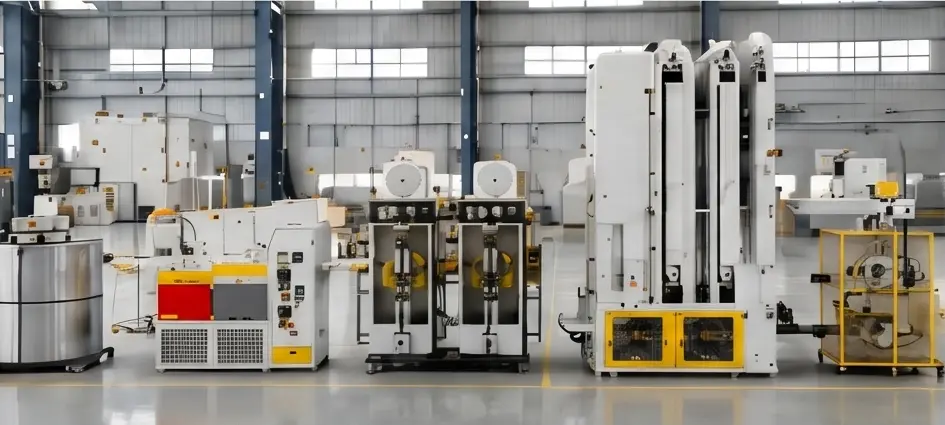

Izixhobo zokwenziwa kwe-GRM

Gqibezela umgca wemveliso wokwenza ukuchaneka, ukufakwa kwe-annealing kunye ne-spooling

Ukuqengqeleka
Mill

Ukuhlaziya
Iziko

Umphezulu
Unyango

Spooling
Inkqubo

Umbane
Ulawulo

→

Ii-Solar Conductor

Iribhoni ye-PV echanekileyo ephezulu kunye ne-MBB yocingo olujikelezayo

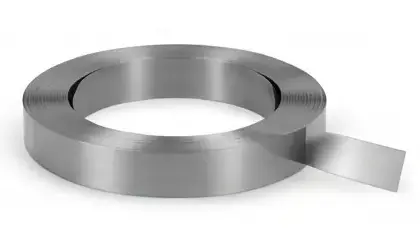

Iribhoni yePV

(IRibhoni yoQhakamshelwano / iRibhoni yeBhasi)

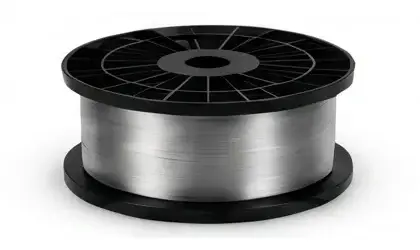

MBB Round Wire

(φ0.20-0.25 mm)

→

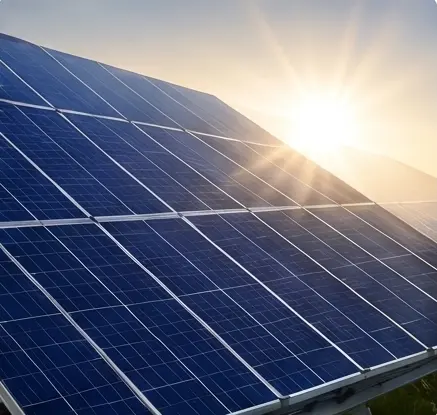

Imodyuli yeSolar

Isetyenziswe kwiimodyuli eziphezulu zelanga

TOPCon
Iimodyuli

HJT
Iimodyuli

Uthelekiso lweMveliso.

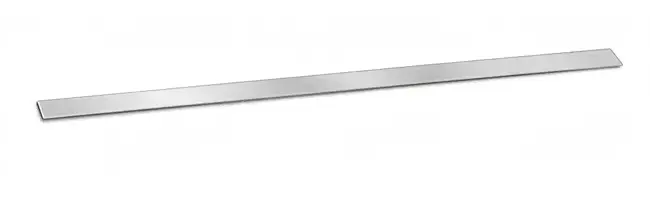

IRibhoni yoQhagamshelwano lwePV

(UkuTapha iRibhoni)

Umsebenzi

UQhagamshelwano lweSeli

Ububanzi

0.3 - 1.6 mm

Ukutyeba

0.10 - 0.25 mm

Isicelo

Cell Stringing

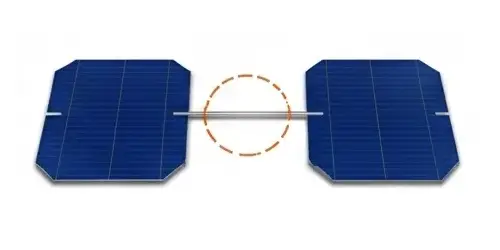

Iqhagamshela iiseli ezimeleneyo kumtya wemodyuli.

Uncedo olungundoqo

Uqhagamshelo oluthembekileyo lweseli ukuya kwiseli kunye ne-solderability ephezulu kunye ne-conductivity egqwesileyo.

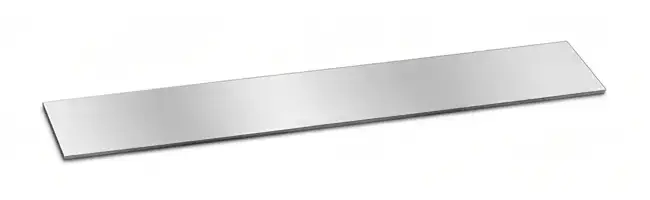

Iribhoni ye-PV Busbar

(Ucingo lwebhasi)

Umsebenzi

Ingqokelela yangoku

Ububanzi

3.0 - 8.0 mm

Ukutyeba

0.20 - 0.50 mm

Isicelo

Imveliso yemodyuli

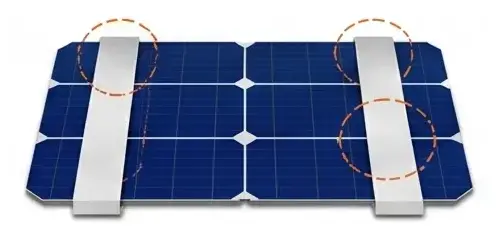

Busbar ribbon current collection diagram

Iqokelela yangoku kwiiseli ezidityanisiweyo kwaye idluliselwe kwibhokisi yesiphambuka.

Uncedo olungundoqo

Ukuxhathisa okuphantsi kunye nomthamo ophezulu wangoku wokuthwala ubuninzi bemveliso yamandla.

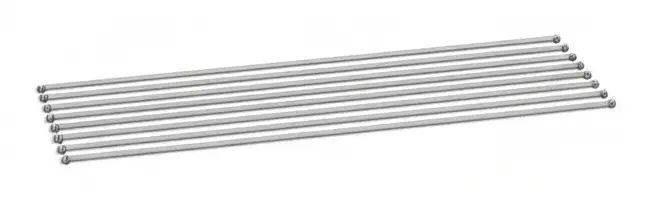

PV MBB Round Wire

Umsebenzi

UQhagamshelwano lweeBhasi ezininzi

Ububanzi

φ0.20 - 0.26 mm

Ukutyeba

–

Isicelo

IiModyuli eziSebenza ngokuPhezulu

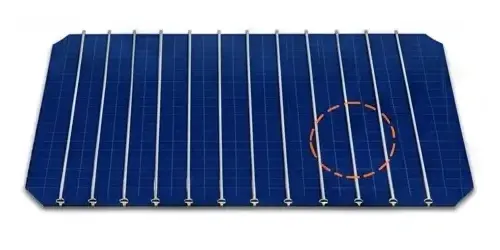

MBB round wire soldering on cell surface

I-Soldered kwi-cell surface ukunciphisa umthunzi kunye nokuphucula ukusebenza kakuhle.

Uncedo olungundoqo

Ukunciphisa ilahleko yomthunzi kunye nokusetyenziswa kokukhanya okungcono ekusebenzeni kwemodyuli ephezulu.

Uphawu	IRibhoni yoQhagamshelwano lwe-PV (iRibhoni yokuNxulumanisa)	Iribhoni yeBhasi yePV (ucingo lwebhasi)	PV MBB Round Wire
Umsebenzi	UQhagamshelwano lweSeli	Ingqokelela yangoku	UQhagamshelwano lweeBhasi ezininzi
Ububanzi	0.3-1.6mm	3.0-8.0mm	-
Ukutyeba	0.1 -0.25mm	0.20 -0.50mm	-
Ububanzi	-	-	φ0.20-0.26mm
Isicelo	Cell Stringing	UPhumo lwemodyuli	IiModyuli eziSebenza ngokuPhezulu

Iribhoni ye-PV kunye ne-MBB yocingo olujikelezayo lusetyenziswa ngokubanzi kwimveliso yeemodyuli ze-photovoltaic eziphezulu. Ngokwamkelwa okukhawulezayo kwe-TOPCon, i-HJT kunye ne-BC itekhnoloji yeeseli, abavelisi bafuna abaqhubi abanobuchwephesha obuphezulu, ukuthengiswa okungcono kunye nokusebenza kombane okuphuculweyo.

Izixhobo ze-GRM zixhasa ukuveliswa kwee-condactor zelanga ezisetyenziswa ku:

TOPCon Iimodyuli

Iimodyuli ze-HJT

Iimodyuli ze-BC

Iimodyuli zeSilicon zeCrystalline eziqhelekileyo

Utility-Scale Systems Solar Power

IiProjekthi ezisasaziweyo zeSolar Energy

Ukuthenjwa ziiNkokheli zoShishino

Izixhobo ze-GRM zinikezelwe kwiribhoni ye-PV ehamba phambili kunye nabavelisi be-solar conductor e-China nakwiimarike zaphesheya. Ukutyhubela iminyaka yentsebenziswano namahlakani kushishino, i-GRM iqokelele amava abanzi ekuqengqelekeni kwee-conductor, ukufakwa kwe-anneal, ukutofa kunye nokuphucula inkqubo.

Izisombululo zethu ze-solar PV ribbon machine solutions zixhasa abavelisi abavelisa abaqhubi beemodyuli zelanga eziphezulu kunye nokunceda abathengi baphucule imveliso, ukuhambelana kwemveliso kunye nokuthembeka kwexesha elide lokusebenza.

Qala iProjekthi yakho yokuVelisa iSolar PV

Nokuba ungena kwishishini le-PV conductor okanye wandisa amandla akho emveliso, i-GRM ibonelela ngezisombululo ezipheleleyo zezixhobo, ubuchule benkqubo kunye nenkxaso yobugcisa yexesha elide.

Qhagamshelana ne-GRM yeeyenziwe ngokwezifisoIribhoni ye-PV okanye isisombululo sokwenza ucingo lwe-MBB.

Kutheni ukhetha iGRM?

Igxininise ekuhambiseni izixhobo eziphezulu kunye nezisombululo ezithembekileyo ze-PV iribhoni kunye nokuveliswa kweengcingo ze-MBB.

20+

Iminyaka

Amava e-Precision Ukuqengqeleka

Ubuchwephesha obubanzi bokuqengqeleka ngokuchanekileyo, ukugquma kunye nezixhobo zokuvelisa umqhubi.

10+

Amalungelo awodwa omenzi wechiza

Itekhnoloji yePatent

Iitekhnoloji ezininzi ezinelungelo elilodwa lomenzi wechiza ukuqengqeleka ngokuchanekileyo, ulawulo loxinzelelo kunye neenkqubo zonyango lwangaphezulu.

100+

Imigca eFakelweyo

IiReferensi zoShishino

Ithenjwe ngabavelisi be-PV abakhokelayo kunye nabavelisi be-solar conductor kwihlabathi liphela.

24/7

Uxhaso lobuchwepheshe

Inkonzo yomjikelo wobomi

Inkxaso ebanzi ukusuka kufakelo kunye nokugunyazisa ukuphuculwa kunye nokwenza ngcono.

Imibuzo ebuzwa qho

1. Yintoni iribhoni yePV?

Iribhoni ye-PV yi-conductor yobhedu ecwebileyo eboshwe nge-solder kwaye isetyenziselwa ukudibanisa iiseli zelanga ngaphakathi kweemodyuli ze-photovoltaic.

2. Yintoni umahluko phakathi kweribhoni yoqhagamshelo kunye neribhoni yebhasi?

Iribhoni yokudibanisa idibanisa iiseli zelanga, ngelixa i-ribbon yebhasi iqokelela kwaye idlulisa umbane okhoyo kwibhokisi ye-junction.

3.Yintoni i-MBB ucingo olungqukuva?

I-MBB ucingo olujikelezayo lusetyenziselwa kwiimodyuli zelanga ze-multi-busbar ukunciphisa ukulahleka kwe-shading kunye nokuphucula ukusebenza kwemodyuli.

4.Sisiphi isixhobo esifunekayo ukwenza iribhoni yePV?

Umgca wemveliso weribhoni we-PV opheleleyo uquka ukuqengqeleka, ukufakwa kwe-annealing, ukuthambisa, ukulawula ukuxinezeleka kunye neenkqubo ze-spooling.

5.Ngaba umgca wemveliso omnye uvelisa ubungakanani obuhlukeneyo beribhoni?

Ewe. Iinkqubo ze-GRM zinokulungiselelwa imveliso eguquguqukayo kunye nokutshintsha kwemveliso ngokukhawuleza.

View as

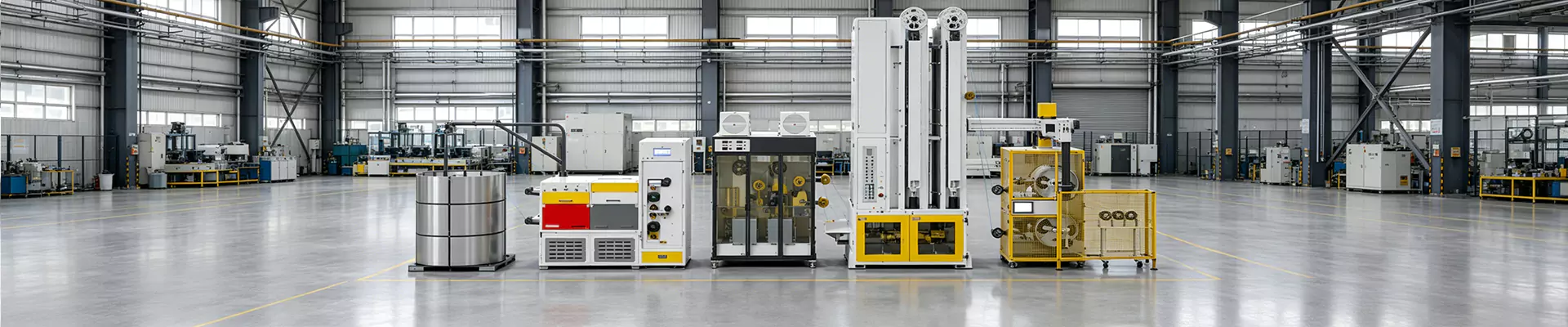

I-PV Busbar Ribbon Production Line

I-GRM PV Busbar Ribbon Production Line ziyilelwe ukuba ngokuqhubekayo ziqhube i-TU1 i-oxygen-free yobhedu ucingo olujikelezayo olujikelezayo kwiribhoni ephezulu echanekileyo ye-tin-coated flat conductive. Umgca ufanelekile kwiribhoni yokudibanisa i-PV, i-ribhoni yebhasi, kunye nemveliso ye-ribbon ye-busbar.
Umgca opheleleyo udibanisa umzobo wocingo, ukuqengqeleka ngokuchanekileyo, ukunyathela ngokuqhubekayo, unyango lwe-flux, i-hot-dip tin coating, kunye nokuthatha ngokuzenzekelayo. Inceda abavelisi beribhoni be-PV balawule ububanzi kunye nokuchaneka kobukhulu, umgangatho wokwambathisa wenkcenkceshelo, ukuchaneka komcu, kunye nokungaguquguquki kokujika.
Umgca wemveliso weribhoni yebhasi yeGRM umalunga ne-26 m ubude kunye ne-3 m ububanzi, kunye nobunzima bomgca obumalunga neetoni ezili-14. Isantya soyilo sinokufikelela kwi-150 m / min, kuxhomekeke kubungakanani bocingo lobhedu, imilinganiselo yeribhoni egqityiweyo, isantya se-tinning, kunye nendlela yokuthatha. Ngaphantsi kweemeko eziqhelekileyo zemveliso, imveliso yenyanga ingafikelela malunga neetoni ezingama-60-80.

Funda ngokugqithisileyo Thumela uMbuzo

Umatshini omtsha weSolar PV Round Wire

I-GRM entsha ye-Solar PV Round Wire Machine yenzelwe ukuveliswa kweerebhoni zokudibanisa, i-core conductive material esetyenziswa kwiimodyuli ze-PV.
Umgca udibanisa umzobo ochanekileyo, i-tinning, ulawulo lwe-tension, kunye ne-intelligent winding ukuxhasa i-ribbon geometry ezinzileyo, ubukhulu obufanayo bokugquma, kunye neempawu zomatshini ezingaguqukiyo. Ezi zakhono zenkqubo zinceda abavelisi be-PV baphucule umgangatho wokunxibelelana kweeseli, ukuthembeka kwemodyuli, kunye nokuhambelana kwemveliso yexesha elide.

Funda ngokugqithisileyo Thumela uMbuzo

<1 >

Njengomenzi othembekileyo we- Umatshini weRibhoni wePV weSolar kunye nomthengisi e-China, sinomzi-mveliso wethu. Ukuba ufuna ukuthenga iimveliso ezisemgangathweni kunye nezizinzileyo, nceda uqhagamshelane nathi.
