I-PV Busbar Ribbon Production Line

I-GRM PV Busbar Ribbon Production Line ziyilelwe ukuba ngokuqhubekayo ziqhube i-TU1 i-oxygen-free yobhedu ucingo olujikelezayo olujikelezayo kwiribhoni ephezulu echanekileyo ye-tin-coated flat conductive. Umgca ufanelekile kwiribhoni yokudibanisa i-PV, i-ribhoni yebhasi, kunye nemveliso ye-ribbon ye-busbar.
Umgca opheleleyo udibanisa umzobo wocingo, ukuqengqeleka ngokuchanekileyo, ukunyathela ngokuqhubekayo, unyango lwe-flux, i-hot-dip tin coating, kunye nokuthatha ngokuzenzekelayo. Inceda abavelisi beribhoni be-PV balawule ububanzi kunye nokuchaneka kobukhulu, umgangatho wokwambathisa wenkcenkceshelo, ukuchaneka komcu, kunye nokungaguquguquki kokujika.
Umgca wemveliso weribhoni yebhasi yeGRM umalunga ne-26 m ubude kunye ne-3 m ububanzi, kunye nobunzima bomgca obumalunga neetoni ezili-14. Isantya soyilo sinokufikelela kwi-150 m / min, kuxhomekeke kubungakanani bocingo lobhedu, imilinganiselo yeribhoni egqityiweyo, isantya se-tinning, kunye nendlela yokuthatha. Ngaphantsi kweemeko eziqhelekileyo zemveliso, imveliso yenyanga ingafikelela malunga neetoni ezingama-60-80.

Thumela uMbuzo

Ingcaciso yeMveliso

Ukusuka kwiCopper Wire ukuya kwiRibhoni yeBusbar egqityiweyo

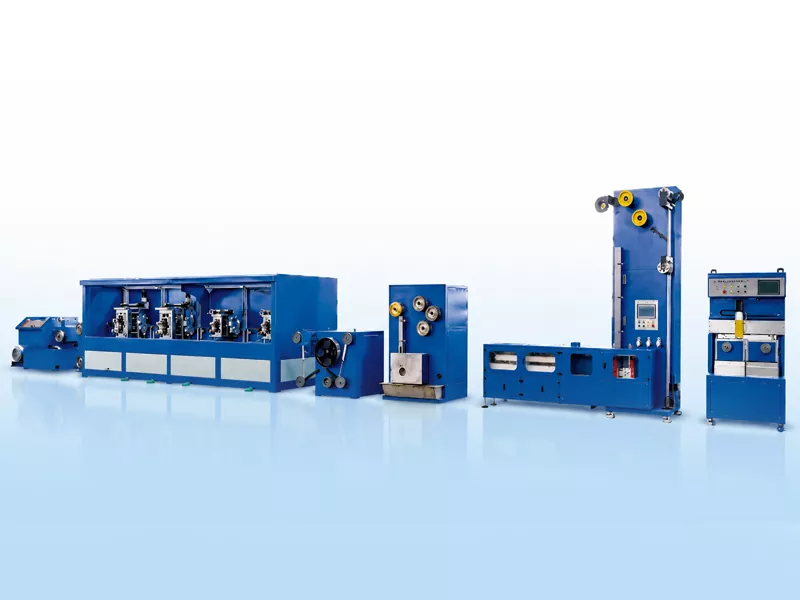

I-PV Busbar Ribbon Production Line isebenzisa kakhulu ucingo lobhedu njengento ekrwada. Ucingo lutsalwa kuqala kwidayamitha efunekayo ukuze luqengqeleke, emva koko lwenziwe lube yiribhoni esicaba ngokuqengqeleka kokuchaneka kwezinto ezininzi. Emva kokuqengqeleka, umtya wobhedu udlula kwi-annealing eqhubekayo ukuze ulungelelanise iipropathi zayo zemishini, ilandelwa kunyango lwe-flux kunye ne-hot-dip tin coating. Ekugqibeleni, i-ribhoni egqityiweyo ihlanjululwa yinkqubo yokuthatha ngokuzenzekelayo kwi-spools okanye iikhoyili ze-pancake.

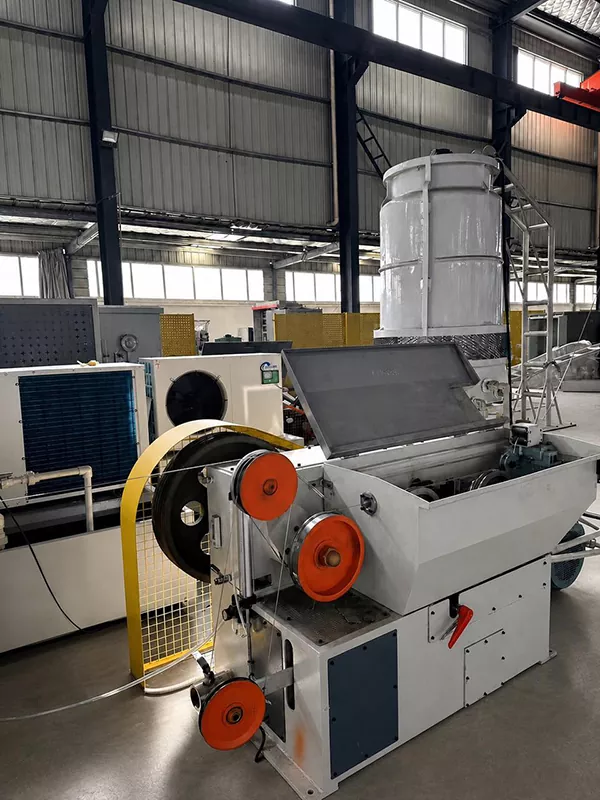

Umatshini wokuzoba

Ucingo lobhedu lutsalwa ngokufa ukuya kububanzi be-2.6-3.0 mm, lulungele ukuqengqeleka.

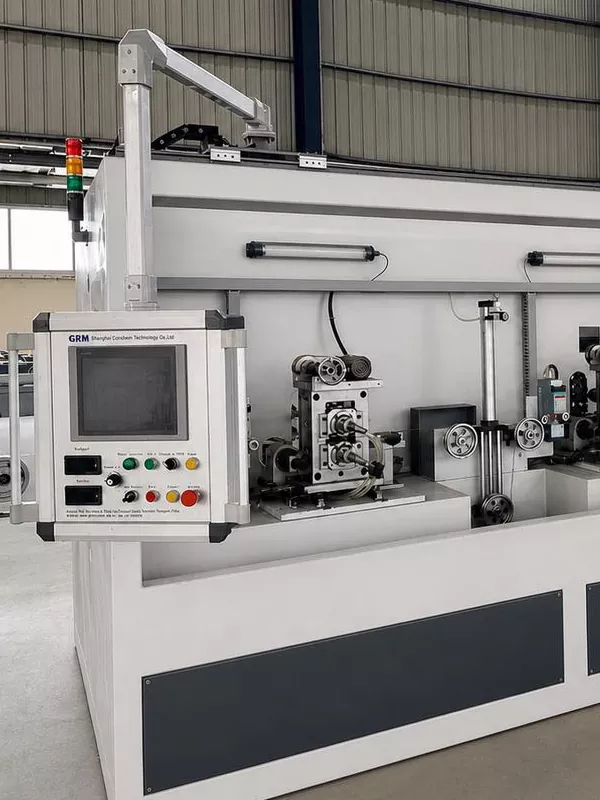

4 Roll Stand

Ucingo lobhedu olungqukuva luqengqeleka kwiribhoni ecaba, enobubanzi obulawulwayo kunye nokuchaneka kobukhulu.

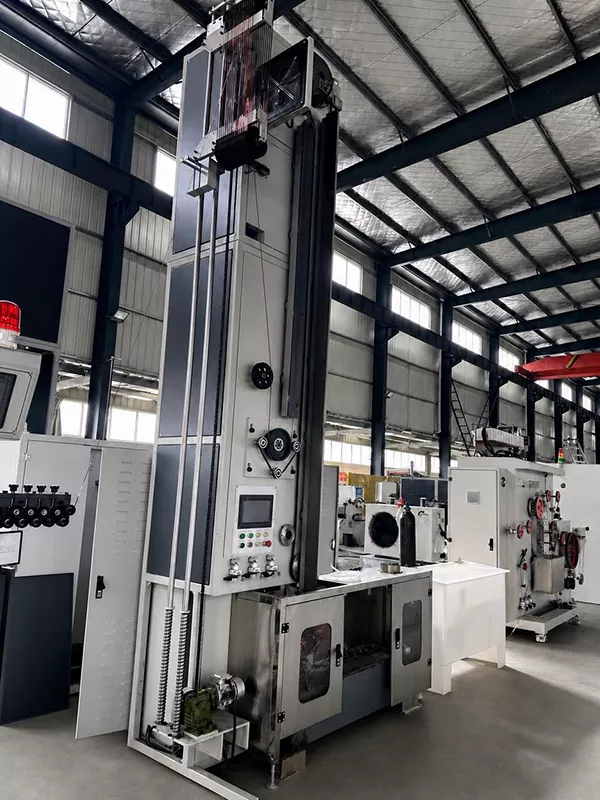

Ukuhlaziya

I-annealing ye-short-circuit annealing isetyenziselwa ukukhuselwa kwegesi ye-inert kunye nokupholisa kwamanzi okujikelezayo ukuphucula iipropathi zomatshini zeribhoni zobhedu.

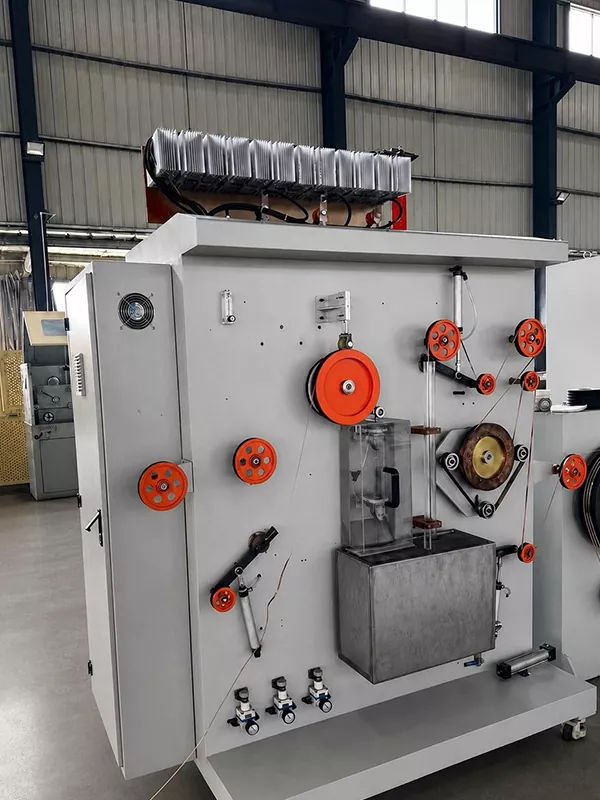

I-Tin Coating

Kusetyenziswa ukugquma inkonkxa eshushu. Iimela zomoya zilawula ukutyeba komaleko we-tin, kwaye iifeni zokupholisa zinceda ukuzinzisa umgangatho ongaphezulu. Ubukhulu becala elinye letoti yokwambathisa: 0.01-0.025 mm.

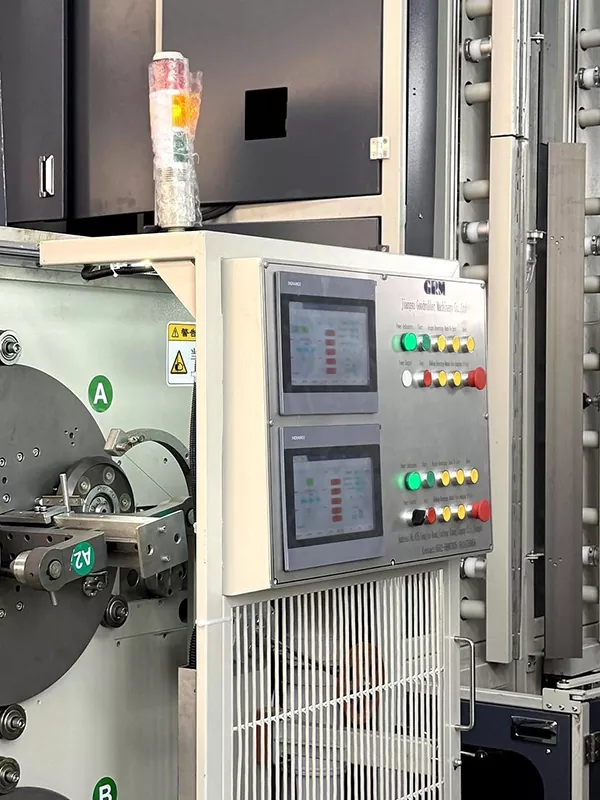

Ukutshintsha iCoil ngokuzenzekela

Imisebenzi ekhethiweyo ibandakanya ukunqumla kwe-servo, utshintsho oluzenzekelayo lwe-spool, ukusika ngokuzenzekelayo, kunye nokucofa ngokuzenzekelayo.

UkuThatha okuchanekileyo

I-Spool winding: ukuya kuma-30 kg.

I-Pancake coil winding: ukukhetha i-1-2 kg.

R&D kunye nePatents

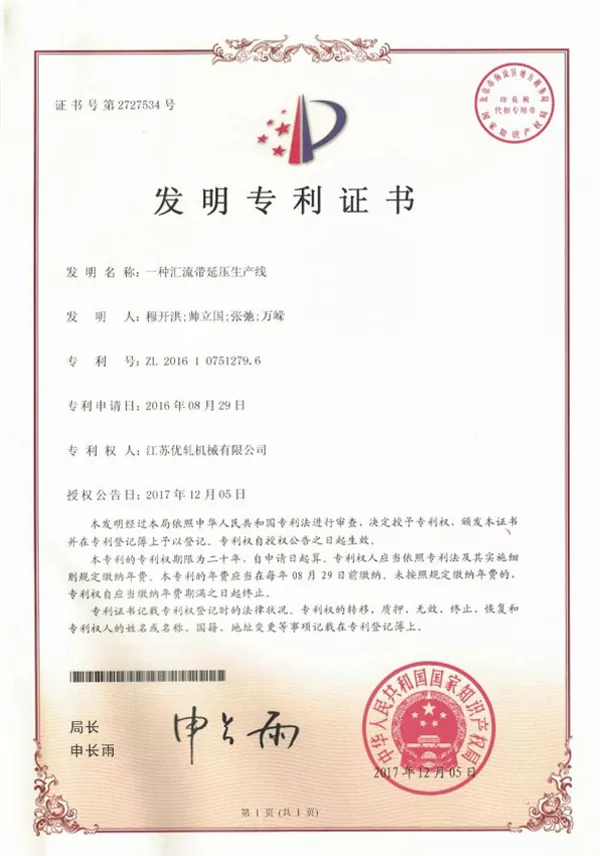

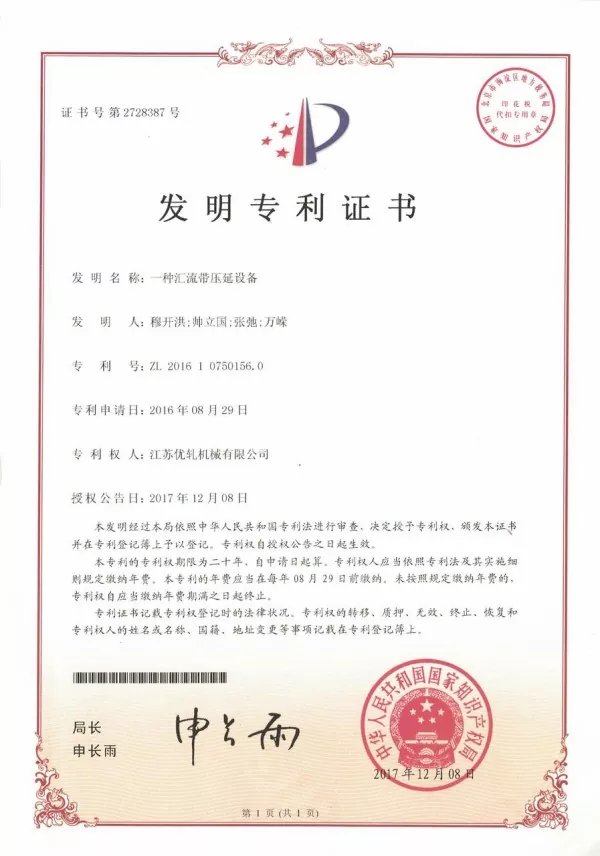

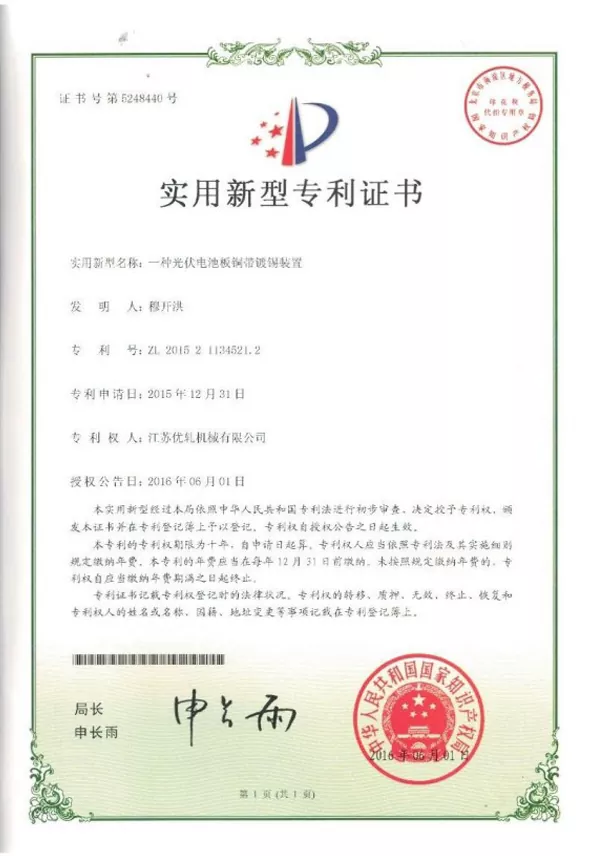

Ukususela ngo-2015, i-GRM iqhubekile nokuphuhlisa izixhobo zokuvelisa i-PV yokudibanisa i-ribbon kunye ne-busbar ribbon. Inkampani ifumene amalungelo awodwa omenzi wechiza anxulumene nokuqengqeleka ngokuchanekileyo, ukudityaniswa komgca wemveliso, kunye neenkqubo zokwenza iribhoni ye-PV.

Ubuchwephesha be-GRM obunePatent ye-PV Ribbon Manufacturing Technologies

Ezona mpawu

Imveliso eqhubekayo ukusuka kwigalelo locingo lobhedu ukuya ekugqityweni kweribhoni ye-tin-coated busbar.
Ukuphuculwa kokuhambelana komgangatho, ukufana kokugquma, kunye nomgangatho wokujija.
Ukulungelelaniswa koxinzelelo kunye nokuthatha ngokuzenzekelayo kunceda ukunciphisa ukuphazamiseka kwemveliso kunye nokungenelela ngesandla.
Ixhasa zombini irebhoni yebhasi esemgangathweni kunye nemveliso yeribhoni yebhasi ebonakalisayo kwiimfuno zemodyuli zePV ezahlukeneyo.
Ibonelela abavelisi be-PV ribhoni ngesisombululo esidibeneyo sokuvelisa esijolise kulawulo lwenkqubo, ukuhambelana kwemveliso, kunye nokusebenza kakuhle kwemveliso.

Imibuzo ebuzwa qho

1.Luthini uluhlu lwesayizi yemveliso egqityiweyo?

Ububanzi obugqityiweyo: 3-8 mm.

Ubunzima obugqityiweyo: 0.2-0.4 mm.

2.Yintoni ukunyamezela kunye noluhlu lwepropathi yoomatshini?

Ukunyamezela ububanzi: ± 0.085 mm.

Ukunyamezela ukutyeba: ± 0.01 mm.

Amandla okuqina: ≥260 MPa.

Amandla esivuno: 90-130 MPa.

3.Yeyiphi indlela yokwaleka ngetoti esetyenziswayo?

Umgca usebenzisa i-hot-dip tin ukutyabeka, kunye ne-coverage epheleleyo ejikeleze i-ribbon, kubandakanywa nemiphetho yecala.

4.Bulinganiswa njani ububanzi kunye nobukhulu bemveliso?

Isitendi sesine sesixhobo sokungqusha esinemigangatho emine sixhotyiswe ngeesistim ezimbini zokulinganisa i-laser, enye yokulinganisa ububanzi kunye neyomlinganiselo wobukhulu. Idatha yokulinganisa ingaboniswa kwi-HMI.

5.Zeziphi izinto ezinokwenziwa?

I-PV Busbar Ribbon Production Line yenzelwe ngokukodwa i-TU1 i-oxygen-free copper wire. Ukucwangciswa okwenziwe ngokwezifiso kunokubonelelwa ngokweendlela ezahlukeneyo zobhedu, imilinganiselo yeemveliso, kunye neemfuno ezikhethekileyo zeribhoni.
