Photovoltaic Welding Strip Rolling Mill

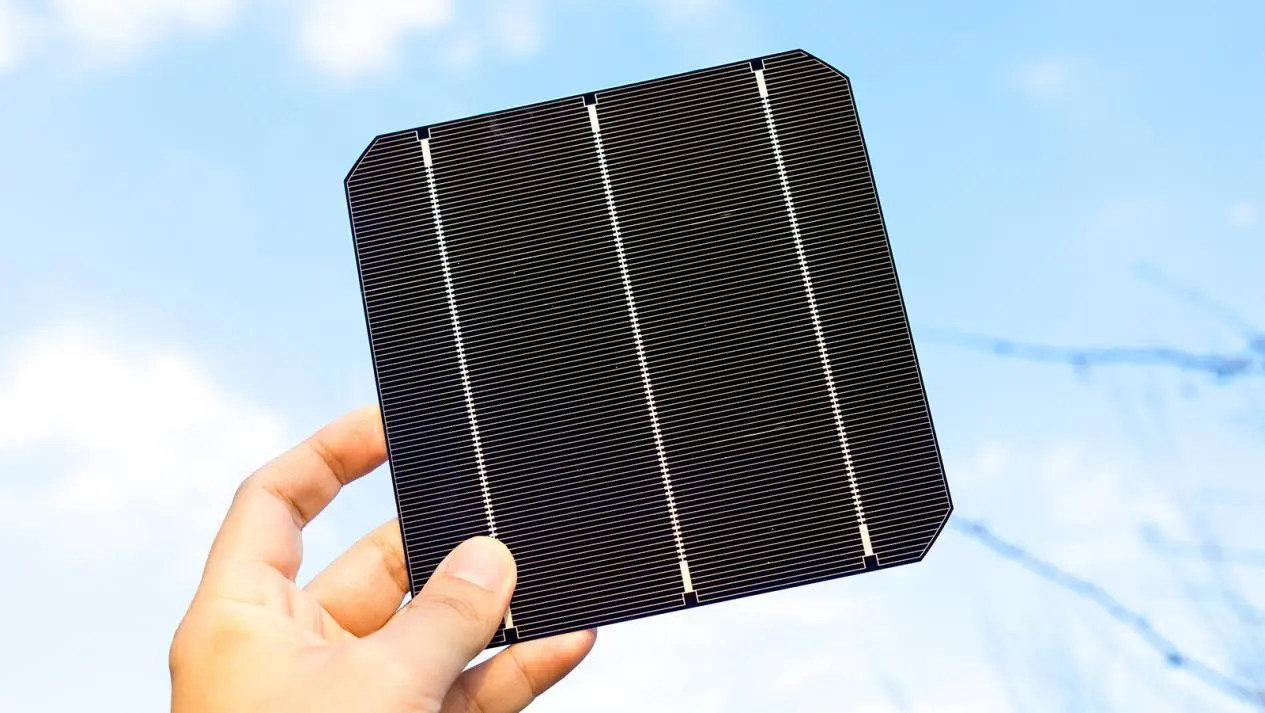

I-China photovoltaic welding strip rolling mill eveliswe yi-GRM Rolling Mill factory yimveliso ekhethekileyo yocingo olucwecwe olusetyenziselwa ukudibanisa iiseli zelanga kwiimodyuli ze-photovoltaic. Iqulethwe nge-substrate yobhedu kunye nokugquma komhlaba. I-substrate ye-Copper idla ngokucoceka okuphezulu kwe-oksijeni yobhedu okanye i-T2 yethusi ebomvu, kunye nomxholo wobhedu ≥ 99.99% kunye ne-conductivity ≥ 98%. Inokuqhuba kakuhle kunye namandla athile, anokuqinisekisa ukuhanjiswa kwangoku ngokufanelekileyo.

Thumela uMbuzo

Ingcaciso yeMveliso

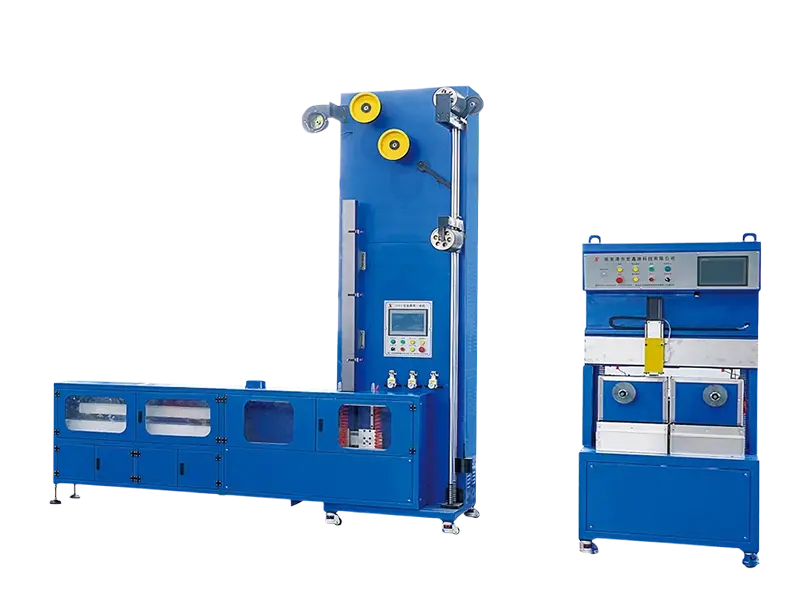

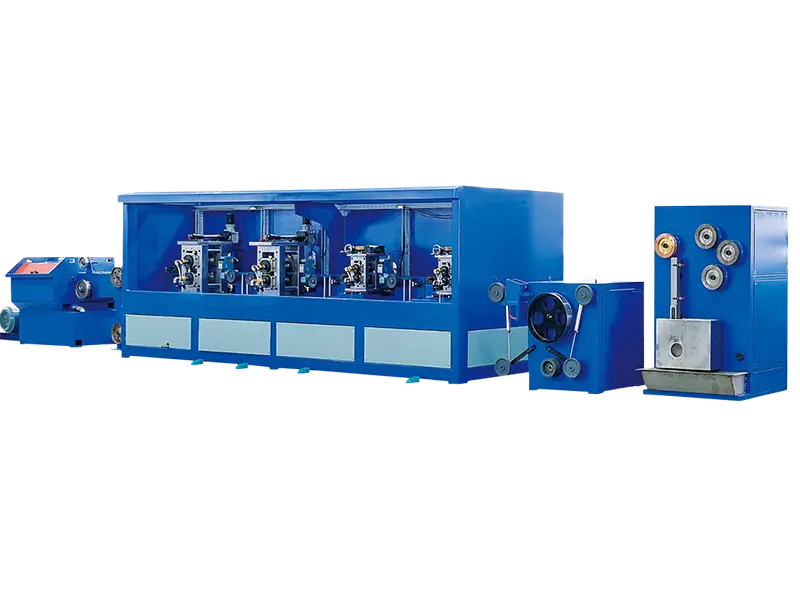

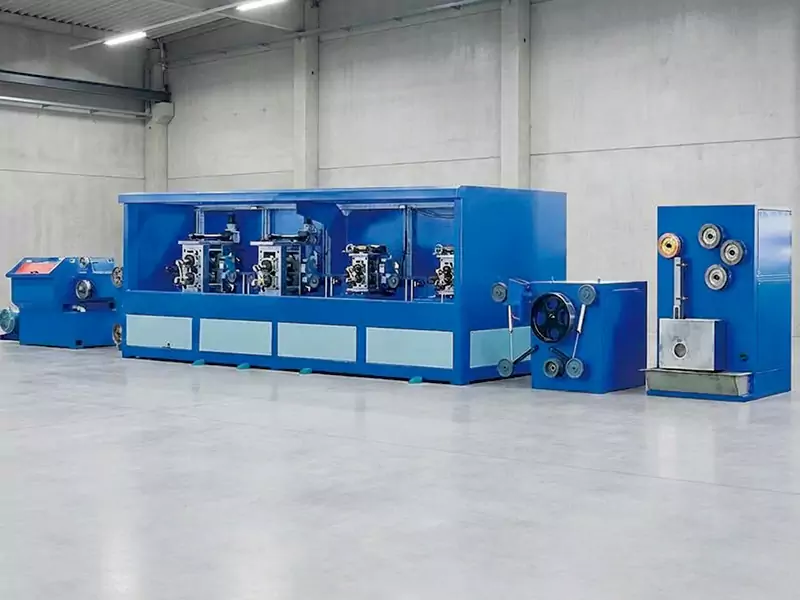

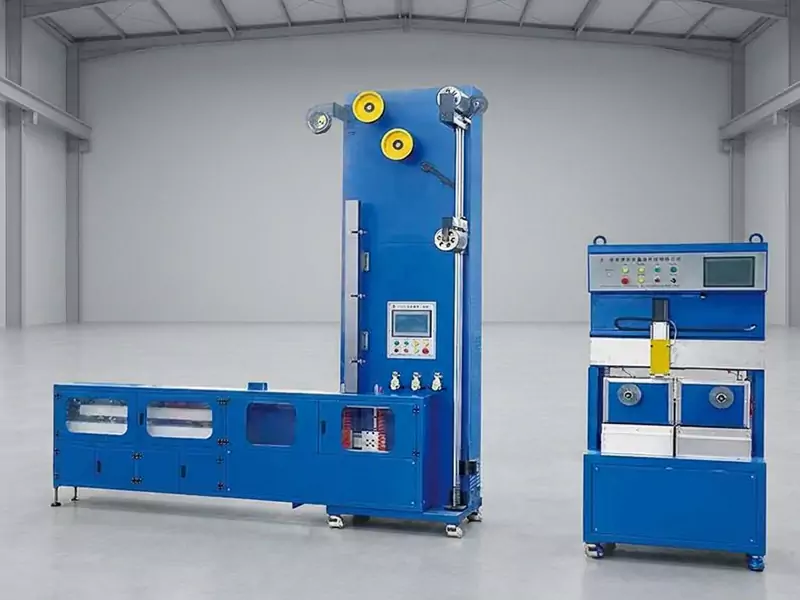

I-Photovoltaic Welding Strip Rolling Mill ehlala ixesha elide evela kumthengisi we-GRM Rolling Mill umatshini odibeneyo owenziwe ngokuzimeleyo ophuhliswe yinkampani yethu sisixhobo esikrelekrele esiphezulu esilungiselelwe ngokukodwa kwishishini le-photovoltaic. Idibanisa iimodyuli ezingundoqo ezisebenzayo ezifana nenkqubo yokubeka i-wire-laying ezenzekelayo ngokupheleleyo, i-multi-pass precision rolling, ulawulo loxinzelelo olukrelekrele, i-annealing eqhubekayo kunye ne-double-station stationing.

Njengomatshini odibeneyo we-busbar ohamba phambili kwi-speed ephezulu, echanekileyo ephezulu, esi sixhobo sinokuqonda inkqubo epheleleyo yemveliso edibeneyo ukusuka kwi-3mm yobhedu lwemathiriyeli ekrwada ukuya kwiimveliso ezigqityiweyo (ububanzi obuyi-3 ~ 8mm, ubukhulu be-0.2 ~ 0.45mm), kunye nesantya sokusebenza esiphezulu se-250m / min, sihambelana ngokugqibeleleyo neemfuno zemodyuli ezingqongqo ze-photovoltaic ephezulu kunye nomgangatho ophezulu wokuzinza.

Ukuhamba kwenkqubo eqhelekileyo

1. Inkqubo yokuqengqeleka kocingo (isebenza kwi-photovoltaic welding iribhoni-convex umatshini odibeneyo weribhoni)

Ukubhatala iingcingo-umzobo wocingo oluneendlela ezininzi-ukuchaneka kwe-calendering-ukuchongwa kunye nolawulo lwe-intanethi-umzobo wendlela enye-ukuhluba kwe-CNC-i-high-speed-tinning-i-annealing eqhubekayo (ukhuseleko lwe-nitrogen)-i-tension winding eqhubekayo

IiParameters zobuGcisa

Iimveliso zeRibhoni zePV	Ipharamitha	Ishishini Umgangatho	Enye iNkampani	GRM
I-Standard Interconnect PV Iribhoni	Ubunzima bokugquma	±5μm	25±5μm	25±3μm
	Ubunzima bemveliso obugqityiweyo	20.01mm	20.015mm	20.01mm
	Ububanzi bemveliso egqityiweyo	±0.05mm	±0.05mm	±0.05mm
	Tensile strength	≥110Mpa	≥150Mpa	≥170Mpa
	Elongation	≥15%	≥25%	≥25%
	Unikeze Amandla	≤70Mpa	≤70Mpa	62.68Mpa
	Ukugoba kwerhengqa	≤5mm/m	≤4mm/m	≤4mm/m
	Ukuxhathisa	0.30Ω* mm/m 0.30Ω*	0.02-0.023Ωmm/m 0.02-0.023Ω	0.0230 Ωmm/m 0.0230Ω
	Ukuchasa ukuguga	-	-	DH2000

Iinzuzo zobugcisa

Ukuchaneka okuphezulu: ± 0.01mm ukunyamezela ubukhulu, ukuziqhelanisa nemigangatho engqongqo ye-photovoltaic welding strips

Ukusebenza okuphezulu: i-250m / min i-speed-speed rolling, ikhwalithi ephezulu ye-Photovoltaic Welding Strip Rolling Mill ibonelelwe

Ukulungelelaniswa kwezinto ezininzi: iyahambelana nobhedu, i-alloy ye-aluminium, njl., i-scalability eyomeleleyo

Uburhabaxa bomphezulu iRa≤0.2μm (ukunciphisa umngcipheko wokuqhekeka kwebhetri)

Usetyenziso oluqhelekileyo:

• Intsimi ye-Photovoltaic: ukuveliswa kobuninzi beerebhoni ze-photovoltaic welding kunye neebhasi zokunceda amacandelo aqhube umbane ngokufanelekileyo.

• Ukusetyenzwa ngokwesiko kweebhasi ezinemilo eyodwa (icandelo elingunxantathu/trapezoidal elinqamlezayo)

• Ishishini le-elektroniki: ukuchaneka okuphezulu kocingo olusicaba olusetyenzwayo, olulungele ii-transformer, ii-inductors kunye namanye amacandelo

Uyilo olulungiselelweyo kunye nenkonzo emva kokuthengisa

• Inkonzo eyenziwe ngokwezifiso: iiparamitha ezifana nenani lokudlula, izinto zokubumba, kunye nesantya sokudweba kunokulungelelaniswa ngokweemfuno ezithile zabathengi.

• Uphuculo lwezixhobo: xhasa ukongezwa kweemodyuli zokupasa kwinqanaba lamva ukuhlangabezana neemfuno zokwandiswa komthamo okanye uphuculo lwenkqubo.

• Iindleko zokuyilungisa: Okukhona ukuphumelela okungaphezulu, kokukhona ixabiso lokungunda kunye nokugcinwa liphezulu, kodwa ukusebenza kakuhle kokwenziwa komsebenzi omnye kuphuculwa kakhulu. Kucetyiswa ukuba wenze ukhetho olufanelekileyo olusekelwe kwisikali semveliso.

Wamkelekile ukuba uqhagamshelane nathi kwaye wazi iinkcukacha ezithe vetshe malunga ne-Photovoltaic Welding Strip Rolling Mill!
