I-CTC Continuous Transposed Conductor Line

I-GRM Rolling Mill CTC Continuous Transposed Conductor Line iqhayisa ngokusebenza okuzinzile kunye nokuchaneka okuphezulu, isekela ukulungiswa kwesantya kunye nokulungelelaniswa okucwangcisiweyo, kwaye isetyenziswa ngokubanzi kwimveliso yocingo oluchanekileyo kwi-transformer, isithuthi samandla esitsha, isixhobo sasekhaya, unyango, kunye neendawo zombane ze-aerospace. Qhagamshelana nathi!

Thumela uMbuzo

Ingcaciso yeMveliso

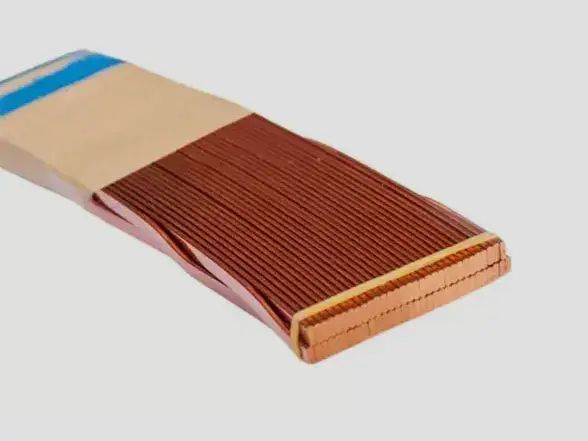

I-GRM Rolling Mill's CTC Continuous Transposed Conductor Line idlulisela ngokuqhubekayo ukusuka kwi-5 ukuya kwi-47 imicu ngokufaka iingcingo zobhedu ezibandayo, ezingenayo i-oksijini kunye ne-varnish yokugquma kunye nokuyisonga ngephepha lokugquma kunye nezinye izinto zokugquma. Ii-conductors ke ngoko zibotshelelwe kwi-compact kwaye zicwangciswe ngokucocekileyo i-rectangular cross-section conductor bundle.

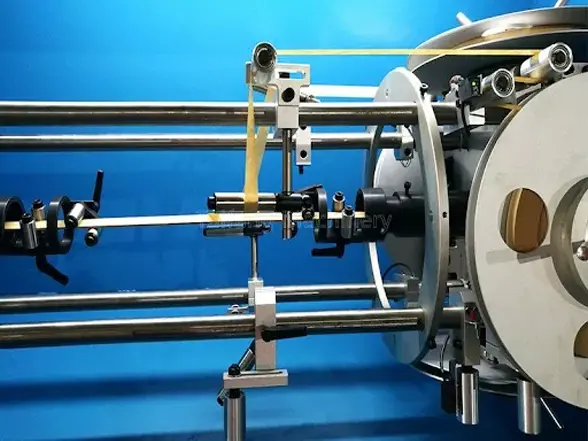

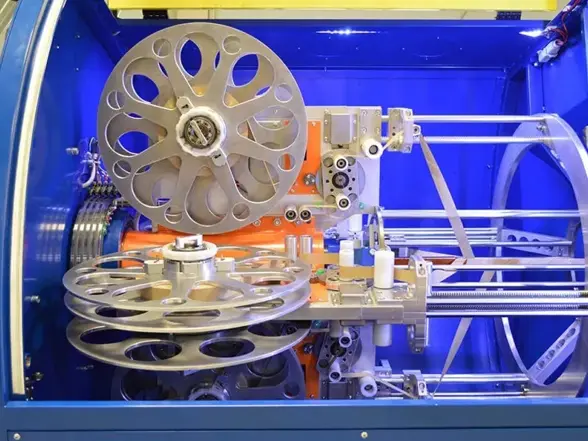

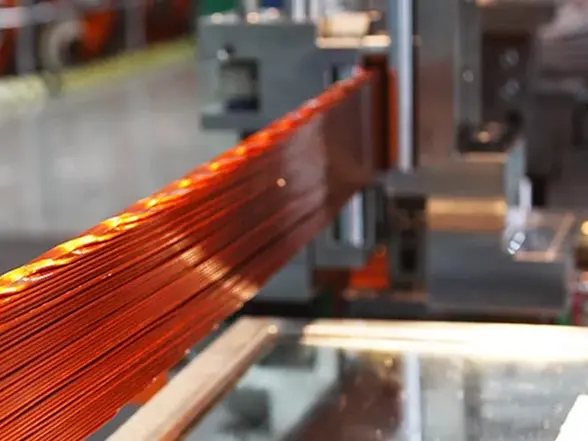

CTC Continuously Transposed Conductor Line

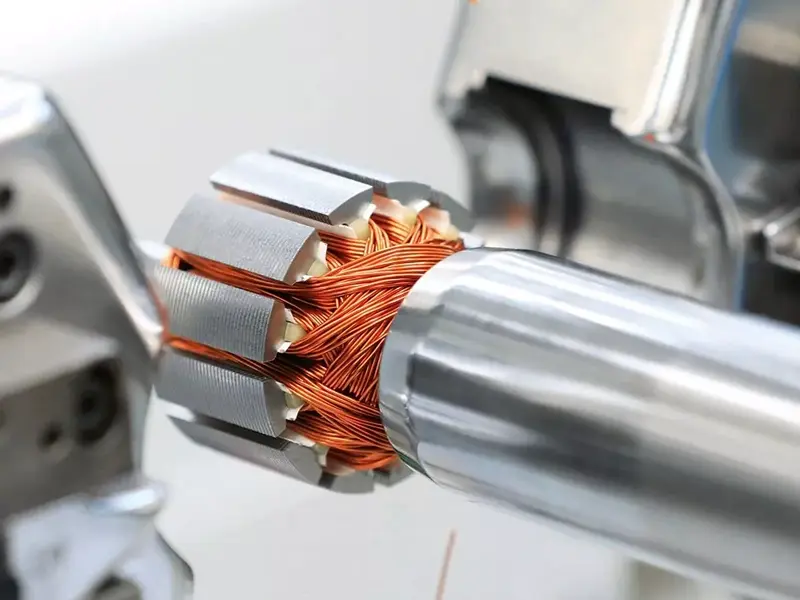

CTC Continuously Transposed Conductor Line for EV components

CTC Continuously Transposed Conductor Line for Household appliances

CTC Continuously Transposed Conductor Line for Medical devices

CTC Continuously Transposed Conductor Line for Aerospace electrical assemblies

Amashishini ezicelo

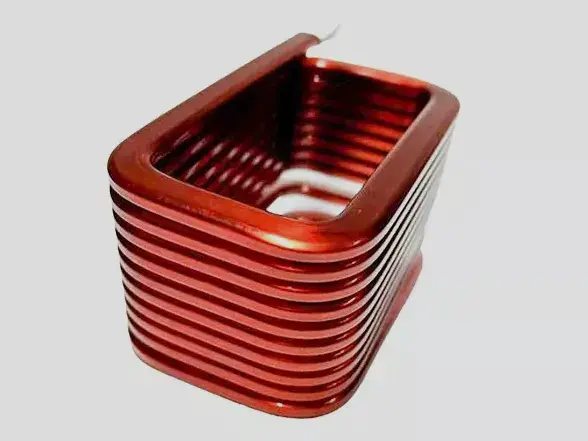

1. iijikajika ze-transformer

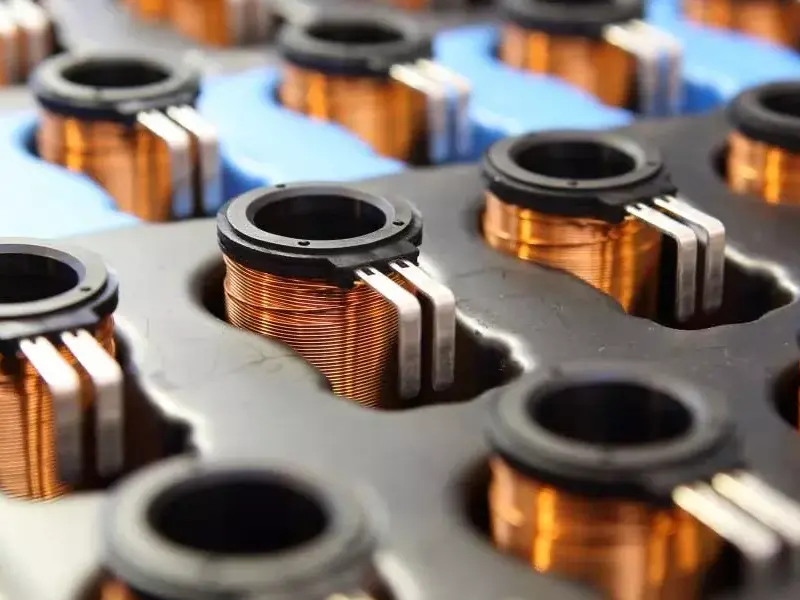

2. Amacandelo e-EV

3. Izixhobo zekhaya

4. Izixhobo zonyango

5. Iindibano zombane zeAerospace

UkuHamba kweNkqubo ePhambili

Intlawulo→Isikhokhelo esinxuseneyo→Uguqulo oluchanekileyo→Ukusonga i-Insulation (Ngokhetho)→Thatha

IiNgcaciso zobuGcisa

Iiparamitha zoMqhubi omnye	Min	Max
Ukutyeba	1.15mm	3.15mm
Ububanzi	3.0mm	12.5mm
Ububanzi/Ubutyebi bomlinganiselo	3:1	8:1
Ukutyeba kwe-enamel	0.08mm	0.18mm

Iiparamitha ze-CTC Conductor	Min	Max
Isantya seMveliso	1 m/mz	15 m/min
Inani labaqhubi	5 (engaqhelekanga)	47 (engaqhelekanga)
Ubude (mm)	5.0	80.0
Ububanzi (mm)	6.0	26.0
Ukutshintsha kwePitch (mm)	20	280
Ubungakanani boBude/Ububanzi	1:3	8:1
Transposition Push Speed	colspan=“2”	150 amaxesha / min

Ezona mpawu

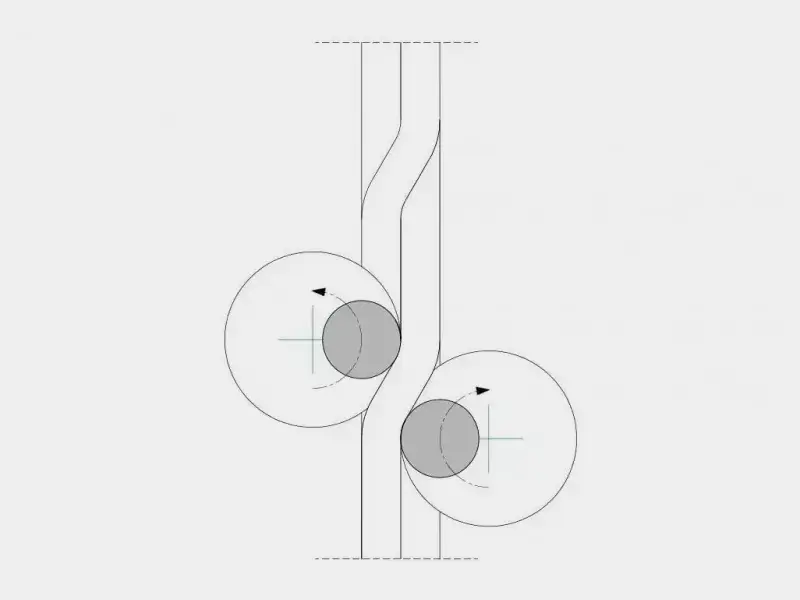

1. Inkqubo yokuguqulwa echanekileyo yokulungelelaniswa komqhubi ozinzile

2. I-CTC Continuous Transposed Conductor Line inokuhambelana ne-enamel-coated flat copper conductors.

3. Iyunithi yokugquma iphepha lokugquma

4. Uxinzelelo olulawulwa yi-Servo kunye nenkqubo yokujija

Izinto eziluncedo kwezobuGcisa

Indawo yemveliso ye-GRM ixhotyiswe ngeenkqubo zokwaleka kwi-intanethi kunye nokuhlola ezikwaziyo ukusetyenzwa kweengcingo zemagnethi ezikhethekileyo ezinemityana emininzi yokugquma i-enamel. Ukusetyenzwa okutsha kokwambathisa ngaphakathi kwendawo enye kuphucula ukusebenza kombane kwaye konyusa umgangatho womphezulu womqhubi. Ukubeka iliso kwi-intanethi ngokuqhubekayo kuqinisekisa ngakumbi ukungaguquguquki kobukhulu kunye nozinzo lwexesha elide lokusebenza.

FAQ

1. Yintoni umqhubi we-CTC?

I-CTC (i-Continuous Transposed Conductor) yi-continuous conductor bundle eyenziwe ngokuqhubekayo ngokugqithisela ii-conductor ezininzi ezifakwe kwi-flat insulated ukunciphisa ilahleko ye-eddy yangoku kwii-transformers.

2. Ziziphi izinto ezinokuthi inkqubo yomgca?

Umgca wenzelwe ikakhulu i-enamel-coated-coated oxygen-free copper conductors flat kunye nezixhobo zocingo lwemagnethi ezinxulumeneyo.

3. Ngaba umatshini unokwenziwa ngokwezifiso?

Ewe. I-GRM ibonelela ngolungelelwaniso olulungelelanisiweyo ngokwemilinganiselo yomqhubi, isantya semveliso, ulwakhiwo lokugquma, kunye noyilo lwesityalo.

Ngaba ukulungele ukuPhucula iMveliso yocingo lwakho lweMagnet?

Qhagamshelana ne-GRM malunga nezisombululo zemveliso ye-CTC elungelelanisiweyo elungiselelwe ukusetyenzwa kocingo olusicaba oluchanekileyo, usetyenziso lwesiguquli, kunye nokuveliswa kocingo lwemagnethi oluphambili.
