Umatshini wocingo lweSolar PV Round

I-GRM Rolling Mill ngumboneleli ohamba phambili wehlabathi jikelele wezixhobo zokuvelisa ezichanekileyo (ezifana neSolar PV Round Wire Machine) kunye nezisombululo ezipheleleyo zomgca weerebhoni ze-photovoltaic, ngakumbi iiribhoni ze-MBB. Sisebenza ngokukhethekileyo ekuboneleleni ngetekhnoloji ebanzi yokuvelisa iiribhoni zoqhagamshelo-eyona nto iphambili yokuqhuba iimodyuli zePV-egubungela umzobo ochanekileyo, ixesha kunye nokujika okukrelekrele. Izixhobo zethu zenzelwe ukufezekisa uzinzo olukhethekileyo kunye nokuhambelana kwi-ribbon geometry, ukufana kwengubo, kunye neempawu zomatshini, osebenza njengelitye lembombo lokuphucula ukusebenza kakuhle kweeseli kunye nokuthembeka kwemodyuli yexesha elide.

Thumela uMbuzo

Ingcaciso yeMveliso

❮

❯

1/3

I-GRM Photovoltic Ribbon Production Line

Umzi-mveliso we-GRM ugxile kwi-R&D kunye nokwenziwa kwezinto ezipheleleyo imigca yemveliso yeerebhoni ze-photovoltaic eziphezulu, ingakumbi iiribhoni ze-MBB (Multi-Busbar). Umatshini wethu weSolar PV Round Wire u eyilelwe ukuhlangabezana neemfuno ezikhulayo zeshishini lokuchaneka kunye nokusebenza, ukuqinisekisa ulawulo oluchanekileyo lwenkqubo epheleleyo ukusuka imathiriyeli ekrwada kwimveliso egqityiweyo. Oku kunceda abathengi bethu ukuba ukuvelisa iiribhoni ezikumgangatho ophezulu kunye ne-conductivity ekhethekileyo, ukuthembeka kwe-soldering, kunye nokuchasana kwexesha elide lemozulu.

Iimpawu eziphambili

Ukusetyenzwa koluhlu:Iphatha ucingo olungenayo ukuya kuthi ga kwi-1.6 mm ubukhulu obukhulu, ivelisa iribhoni egqityiweyo kuluhlu oluchanekileyo lwe-015mm ukuya kwi-0.4 mm.
Umnqophiso oPhambili: Ukuqinisekisa ukuba i-ribhoni egqityiweyo idlula imigangatho yoshishino ekusebenzeni ngokungaguquguqukiyo, ukugubungela ubukhulu / ukufana, ukuzinza kwamandla esivuno, kunye nokuhambelana / ukuhambelana kwemilo.
UQinisekiso loMgangatho: Iinkqubo ezidityanisiweyo zokuhlola ezikwi-intanethi ziqinisekisa ukuthotyelwa kwe-100% kunye nemigangatho engqongqo yomgangatho weshishini le-PV.

❮

❯

1/3

Izinto eziluncedo kwezobuGcisa

Isebenzisa i-PLD (Programmable Logic Drive) ummiselo wesantya esilungelelanisiweyo somgca, esenza ukuba utshintsho olugudileyo kunye nongqamaniso olufanelekileyo.

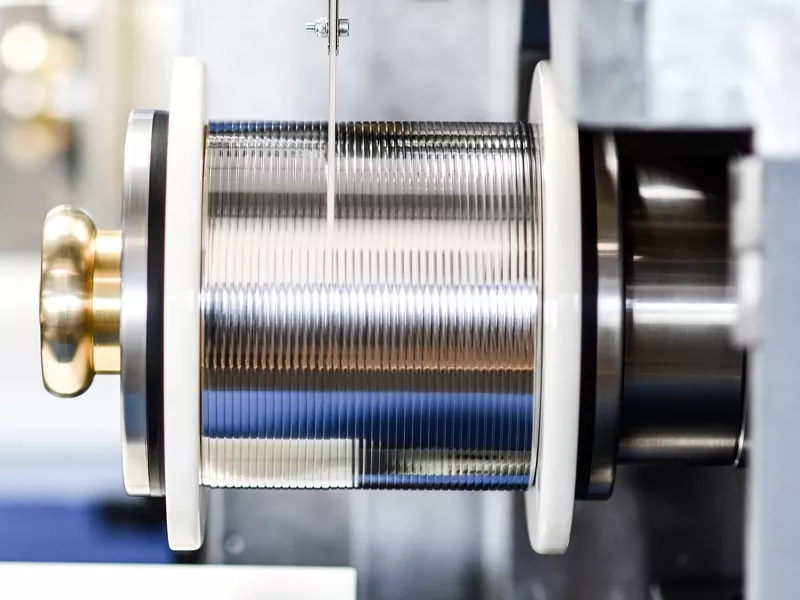

I-Servo-motor elawulwayo ukuthatha-up iqinisekisa uxinzelelo oluqhubekayo kunye nokujika kwekhoyili ecocekileyo.

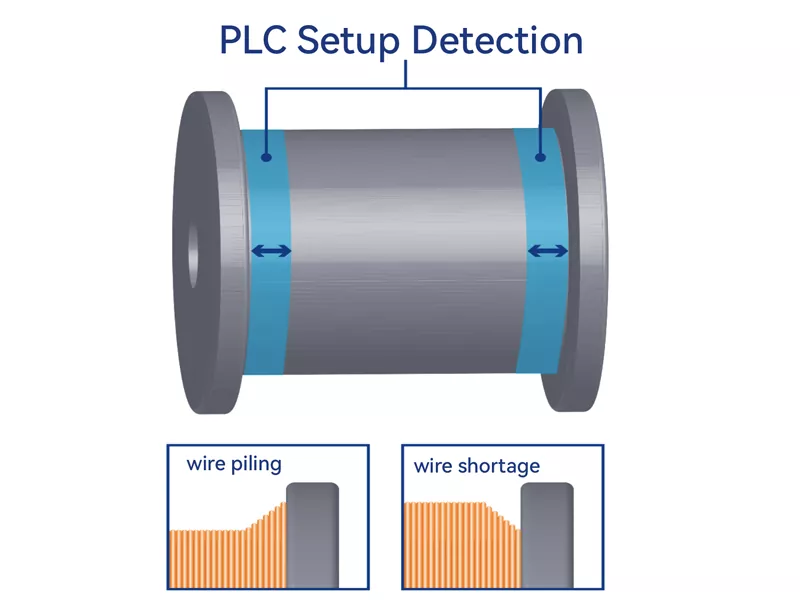

ITekhnoloji yoBunini boBunini: "Ukuhamba ngocingo" (kucingo olujikelezileyo) kunye ne "Bobbin Moving" (yeribhoni ecaba)

Ngokusisiseko iqinisekisa ukujikajika okuqinileyo kunye nokufanayo, ishenxisa ngokupheleleyo "ukugqithelana" kunye "ne-gap winding", okubalulekileyo ukwandisa umthamo we-spool kunye nozinzo lwentlawulo.

Iinketho zoqwalaselo eziguquguqukayo

I-GRM inikezela ngeemodeli eziziSebenzisayo ngokuPheleleyo kunye neSemi-Automatic ukuze zilungele uhlahlo lwabiwo-mali olwahlukeneyo kunye neemfuno ezizenzekelayo malunga noMatshini weSolar PV Round Wire.

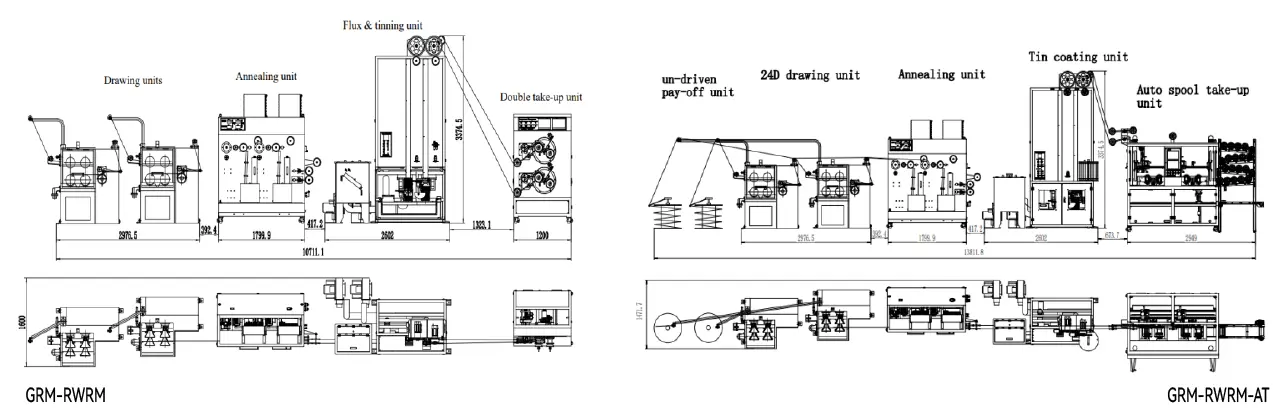

Idatha yoBugcisa
Umzekelo	Ubungakanani beIntel	Ubungakanani obugqityiweyo	Isantya	Unikeze Amandla
GRM-RWRM	Φ1-Φ0.6mm	emva kokugquma: φ 0.15-0.4mm	400m/mz	60-75MPa
GRM-RWRM-AT	Φ1-Φ0.6mm	emva kokugquma: Φ 0.15-0.4mm	600m/mz	60-75MPa

IModeli ye-GRM-RWRM-AT idibanisa iNkqubo yokuLayishwa kwe-Bobbin ezenzekelayo, inciphisa kakhulu ungenelelo lwezandla; ixhotyiswe nge-Automatic Tin Feeding kunye ne-Timing Systems ukuqinisekisa imveliso eqhubekayo kunye nenkqubo engaguqukiyo.

Uqwalaselo lweMarike

Izixhobo zethu zizuze ukuthenjwa kunye nokwamkelwa kwabenzi bePV abakhokelayo behlabathi. Abaxhasi abaphambili bentsebenziswano babandakanya iJA Solar, iTelison, iAdity Birla Group, kunye nezinye iibenchmarks zeshishini, zixhasa ngokuthembekileyo imveliso yazo enkulu yeemodyuli zeeseli ezisebenza ngokufanelekileyo.

I-GRM izibophelele ekubeni liqabane lakho elithembekileyo ekwandiseni umgangatho weribhoni, ekwehliseni iindleko zizonke, kunye nokomeleza ukhuphiswano lwakho lwemalike engundoqo ngeteknoloji yezixhobo ezikumgangatho ophezulu kunye nokuqonda inkqubo enzulu. Wamkelekile ukuba uqhagamshelane nathi kwaye uthenge umgangatho wethu weSolar PV Round Wire Machine!
