IiMili ezi-4 eziPhakamileyo eziMxinwa eziRolayo eziBuyekezwayo

I-GRM-S 4 ephezulu emxinwa amatye okusila anokuphinda abuyiselwe ukusuka kumzi-mveliso we-GRM Rolling Mill ziyilelweukuqengqeleka okuchanekileyo kwemicu emxinwa ngaphantsi kwe-140 mm ububanzi. Ixhotyiswe ngesakhiwo esiguquguqukayo esiguqukayo, i-PLC, isikrini sokuchukumisa kunye nenkqubo yokulawula i-servo, i-mill yenza ukuba i-multi-pass rolling yezixhobo ze-slit strip ngokuchaneka okugqwesileyo, ukunyanzeliswa kwe-strip kunye nomgangatho womphetho. Sisisombululo esifanelekileyo kwizicelo zexabiso eliphezulu ezifuna ukuchaneka kunye nokuguquguquka kwemveliso.

Thumela uMbuzo

Ingcaciso yeMveliso

Izixhobo zokuguqula umva ze-GRM zilungele ukuqengqeleka ngokuchanekileyo kwezixhobo ezahlukeneyo ezibandakanya intsimbi yesilicon, intsimbi engatyiwa, iialloyi zealuminiyam kunye neealloyi zetitanium. Imowudi yokuqengqeleka ebuyiselwa umva ivumela ukucwangciswa kokupasa okuguquguqukayo ngokweempawu zezinto kunye nobukhulu obujoliswe kuyo.

Ibandakanya i-compact layout kunye nexabiso eliphezulu lokusebenza kwexabiso, i-mill ifanelekile ngokukodwa kwimveliso yebhetshi encinci ukuya kwephakathi, izicelo ze-R & D kunye ne-multi-specification processing.

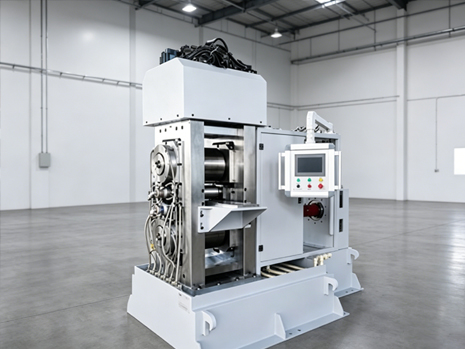

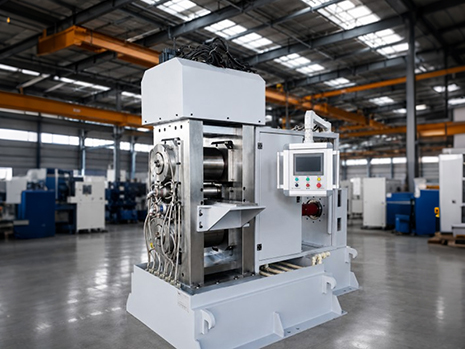

4-high narrow strip reversing mill overview

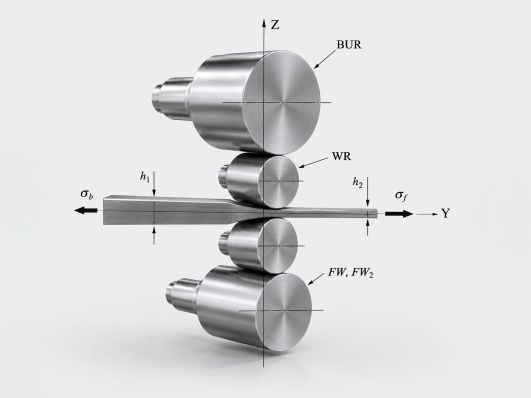

4-high reversing mill main unit with work and backup rolls

Narrow strip reversing mill for stainless steel rolling

Silicon steel narrow strip rolling on 4-high reversing mill

Aluminum alloy narrow strip reversing rolling

Izinto Ezisetyenziswayo

Imicu ye-alloy yesilivere kunye nesilivere

Aluminiyam ingxubevange imicu

Imichilo eyenziwe nge-aluminiyam

Imicu yentsimbi

Iintsimbi ze-silicon

Ingxubevange ye-Titanium kunye nemicu yeengubo ze-titanium

Uqwalaselo

Iqonga elinye elifumanayo kumacala omabini okungena nokuphuma

Iyunithi engundoqo ye-4-high rolling rolling

Iqhutywa ngokuzimeleyo imiqulu ephezulu nasezantsi yokuqengqeleka kwe-asynchronous

I-PLC + HMI + inkqubo yolawulo edibeneyo ye-Servo

Silver alloy and titanium strip rolling on narrow strip mill

Idatha yoBugcisa

Isimbo sokuma	I-4-Ephakamileyo yeSitendi esinye esiBuyisa umva
Ukutyeba kwegalelo	0.5 - 10 mm
Ukutyeba kwemveliso	0.2 - 0.8 mm
Ububanzi bomcu	100 - 140 mm
Ukutyeba Ukunyamezela	±0.015 mm
Ukuthwala iLubrication	I-oyile yokuthanjiswa kwe-oyile evaliweyo
Backup Roll Diameter	Φ300 × 200 mm
Umqulu woMsebenzi weDayimitha	Φ120 × 200 mm
Isantya soyilo	0 - 0.4 m/s
Amandla aqengqelekayo	≥ 80 T

Iingenelo

UYilo oluBuyiswayo oluqengqelekayo

Ulawulo lokupasa oluguquguqukayo lwezixhobo ezahlukeneyo kunye noluhlu lobuninzi.

Ulawulo oluchanekileyo oluPhezulu

Izingqusho ezi-4 eziphakamileyo ezimxinwa eziqengqelekayo ezibuyiswayo zixhotyiswe nge-servo drive epheleleyo kunye nenkqubo yolawulo ye-PLC, ukuphumeza ukuchaneka kobukhulu ukuya kuthi ga kwi-±0.015 mm.

Uyilo lweCompact Mill Stand

Uyilo lokuma olunye olunonyawo oluncinci, lulungele imveliso yebhetshi encinci kunye nephakathi kunye neenkcukacha ezininzi zemveliso.

Iinketho

Inkqubo yokufudumeza nge-Electromagnetic roll (150–250°C)

Inika amandla ukutshintsha phakathi kweendlela zokuqengqeleka ezibandayo kunye nokufudumala.

I-4-phezulu ukuya kwi-2-isakhiwo esiphezulu sokuguqulwa

Igcinelwe ukwandiswa kwenkqubo yexesha elizayo kunye nezicelo ezishushu eziqengqelekayo.

FAQ

I-Q1: Buthini ububanzi bomcu wobuninzi?

GRM: Obona bubanzi buphezulu bomcu yi-140 mm, eyilelwe ukuchaneka kwezicelo zokuqengqeleka komcu omxinwa.

I-Q2: Ngaba inkqubo yokusila ingayenza insimbi engenasici kunye ne-silicon yensimbi?

GRM: Ewe. Imichiza yethu emi-4 ephakamileyo eqengqelekayo eqengqelekayo ekwaziyo ukubuyisela umva ifaneleke ngokukodwa izinto ekunzima ukuziqengqa ezifana nentsimbi engatyiwa kunye nesilicon.

I-Q3: Ngaba ilitye lokusila lingasebenza nge-annealing okanye imigca yokuchola?

GRM: Ewe. I-GRM inokubonelela ngezisombululo ezihlangeneyo ezibandakanya imigca yokuthungatha, iisistim zokuchola kunye nezixhobo zokuphatha ikhoyili.

I-GRM igxile kakhulu kwizisombululo ezichanekileyo zokuqengqeleka komcu omxinwa, ukubonelela ngezixhobo ngokuchaneka okuphezulu, ukuthembeka kunye nokusebenza kakuhle kweendleko. Ukongeza kwindawo yokusila yokubuyisela umva indawo enye, sikwabonelela ngezixhobo zokusila eziziingqimba ezininzi, imigca eqengqelekayo eqhubekayo kunye neenkqubo zokulungisa isinyithi.
Qhagamshelana nathi namhlanje ngesisombululo esilungelelanisiweyo sezinto zakho kunye neemfuno zemveliso.
